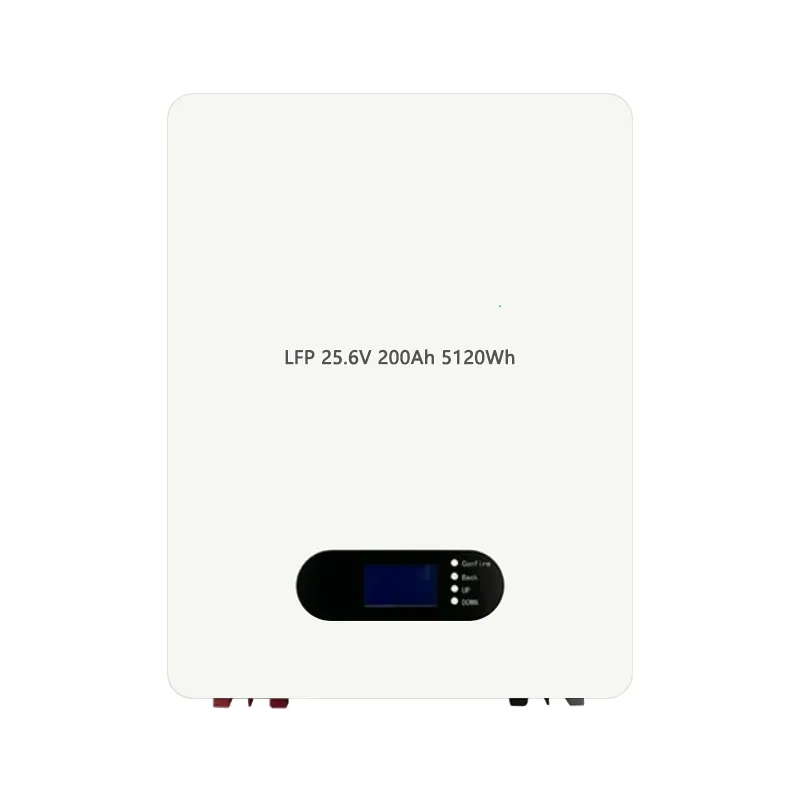

25.6V 200Ah Wall-Mounted LiFePO4 Battery PW24200
Categories: LFP Power Wall Series, Lithium Battery
The Wall-mounted 25.6V 200Ah LiFePO4 Battery is a high-capacity lithium iron phosphate (LiFePO4) battery designed for wall-mounted installations. It provides a reliable and efficient energy storage solution for residential, commercial, and industrial applications.
Features:
- Easy and convenient installation on walls.
- Efficient energy storage with high energy density and long cycle life.
- Smart battery management systems for monitoring and optimizing energy usage.
- LCD display screen to monitor battery's working status in real time
For more detailed information including pricing, customization, and shipping:
Parameters
| Model | PW24200 |
| Rated Capacity | 200Ah |
| Rated Voltage | 25.6V |
| Energy | 5120Wh |
| Standard Charge Current | 40A |
| Max. Charge Current | 100A |
| Charge Cut Off Voltage | 29.2V |
| Standard Discharge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Pulse Discharge Current | 110A |
| Max. Modules in Parallel | 15pcs in parallel |
| Communication | RS485/RS232/CAN |
| Charge Temperature | 0 to 45ºC |
| Discharge Temperature | -20 to 60ºC |
| Storage Temperature | 0 to 40ºC |
| Dimension | 482*470*155mm |
| Weight | 48kg |
CAN'T FIND WHAT YOU WERE LOOKING FOR?
Exceeding your expectations with 10 years of battery manufacturing experience!
You May Also Like
FAQ
Can wall-mounted LiFePO4 batteries be expanded or connected in parallel?
Yes, in many cases, wall-mounted LiFePO4 batteries can be expanded or connected in parallel to increase the overall storage capacity.
What are the safety features of wall-mounted LiFePO4 batteries?
- Overcharge and over-discharge protection.
- Short circuit protection.
- Thermal management systems to prevent overheating.
- Cell balancing to ensure uniform charging and discharging.
- Flame-retardant and non-toxic materials for enhanced safety.
What is the expected warranty period for wall-mounted LiFePO4 batteries?
The warranty period may vary depending on the manufacturer and model but typically ranges from 5 to 10 years.
How can I monitor the performance of a wall-mounted LiFePO4 battery?
Most wall-mounted LiFePO4 batteries come with built-in monitoring systems that provide real-time data on battery status, charge/discharge cycles, energy usage, and other performance metrics. Some batteries may also offer remote monitoring capabilities via mobile apps or online portals.
